| Specification | Details |
|---|---|
| Fluid Medium | Air, Water, Others such as chemicals (Conditional) |
| Max. operating pressure/span> | 1.0MPa (at0～20℃) |
| Min. opening pressure | 5kPa (at25℃) |
| Min. opening differential pressure | 0.01MPa |
| Operating temperature range | 0～80℃, 0～60℃ (NBR)(No freezing) |

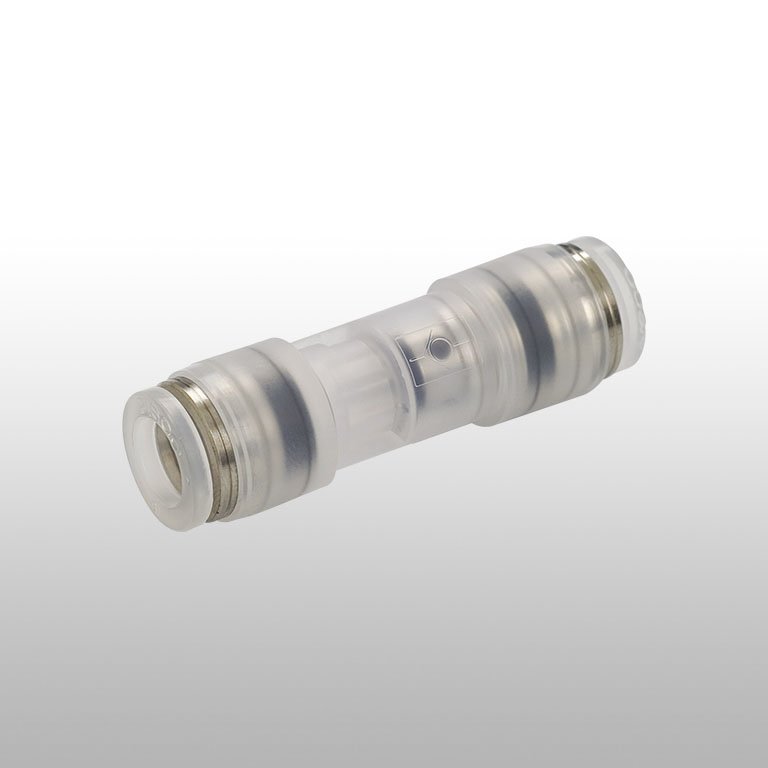

SUS304+PP Check Valve/Low Cracking Pressure/Water Use
Check Valve PP is applicable to water (Fluid).
PP (Polypropylene) is applied for the body material to adapt to clean environment.
