| Specification | Details |
|---|---|
| Fluid Medium | Air |
| Max. operating pressure | 1.0MPa |
| Max. vacuum | -100kPa |
| Min. opening pressure | 5kPa (at25℃) |
| Min. opening differential pressure | 0.01MPa |
| Operating temperature range | 0～60℃ (No freezing) |

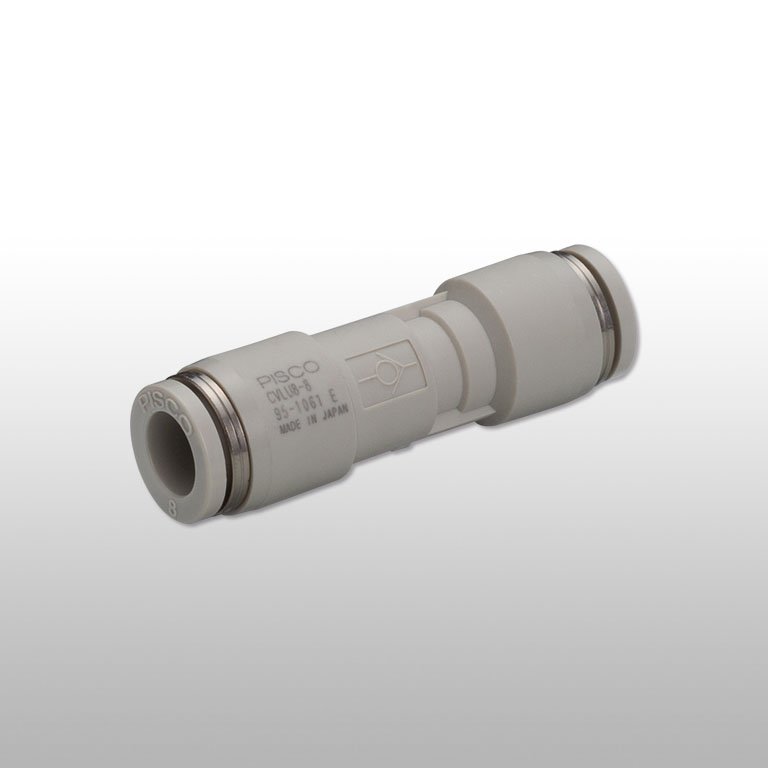

Check Valve with Low cracking Pressure
Securing of air flow becomes possible at low pressure that the conventional valve does not operate.
